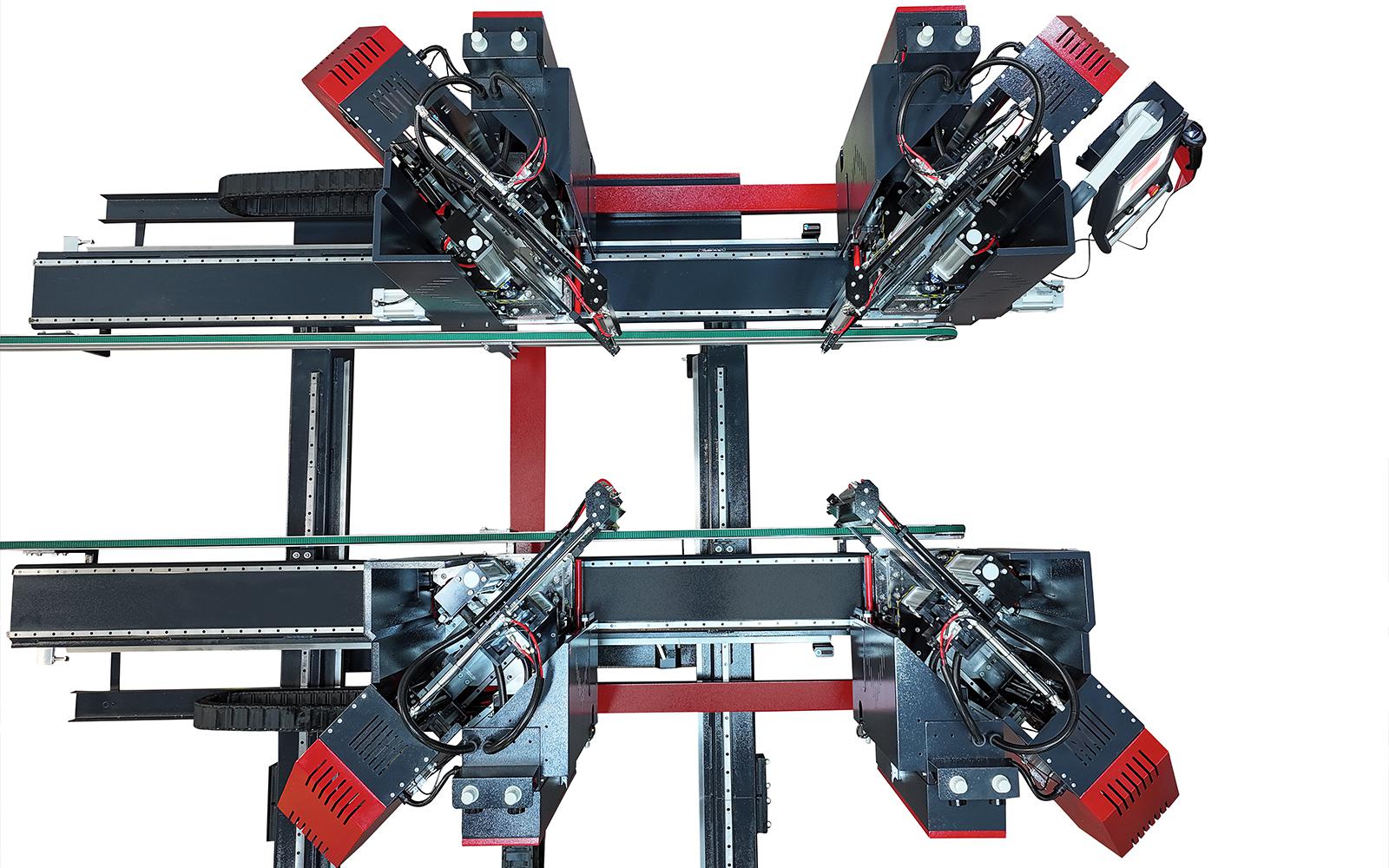

Used to weld four corners of PVC profiles at 90° at the same time

10,1 touch screen panel ( Perfection in Automation Made in Austria B&R)

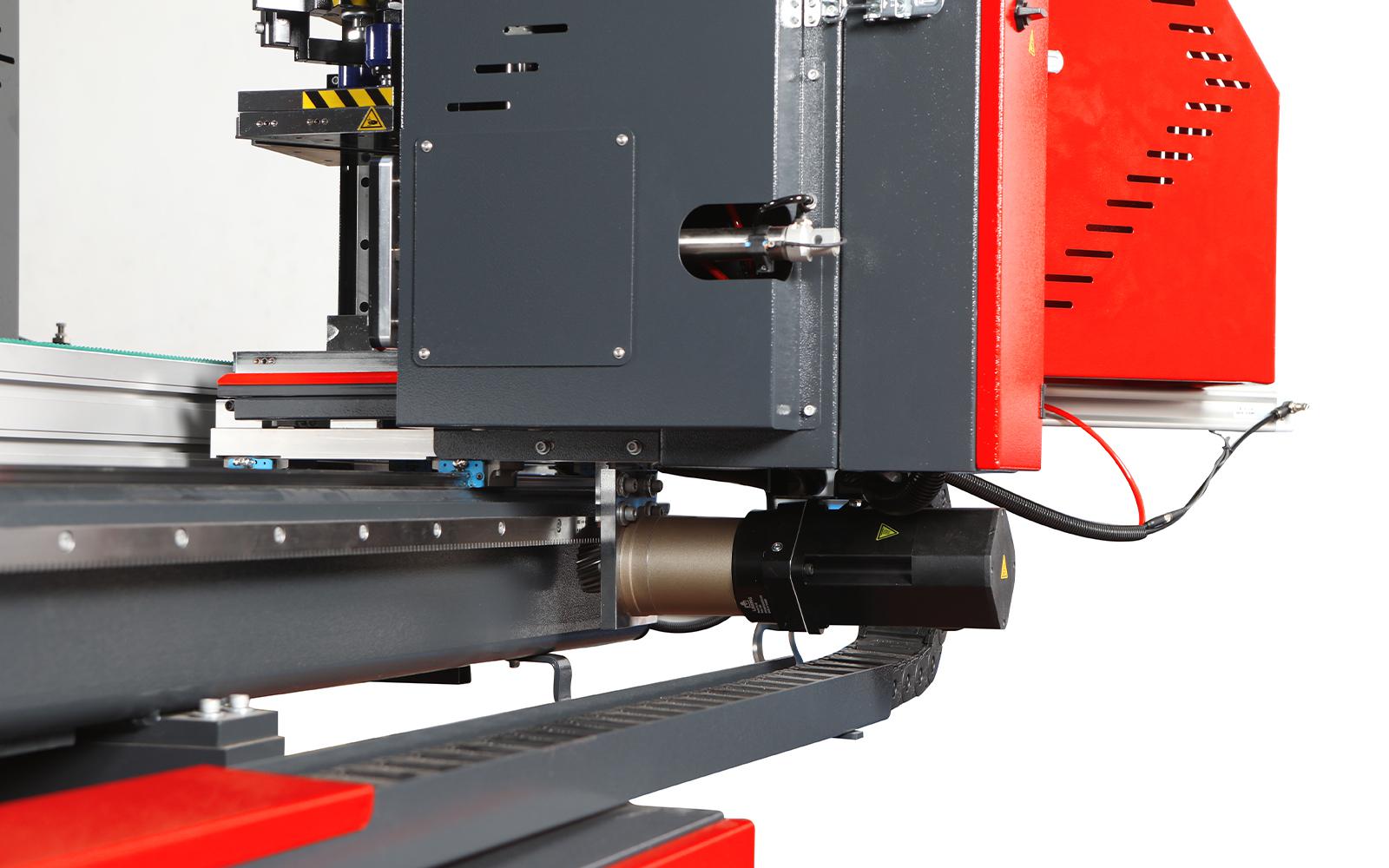

CNC servo control system (3 axes)

Resistance teflon wrapping system

Possibility for 0.2 mm welding for all profile types

Automatic mould opening system makes the welding seams thinner at separating point.

Also easy change mould system.

Possibility to follow the process of heating the resistance (programming for different profiles)

Special brake system with four head welding rail locking

240 - 250 frames / 8 hours

OPTIONS

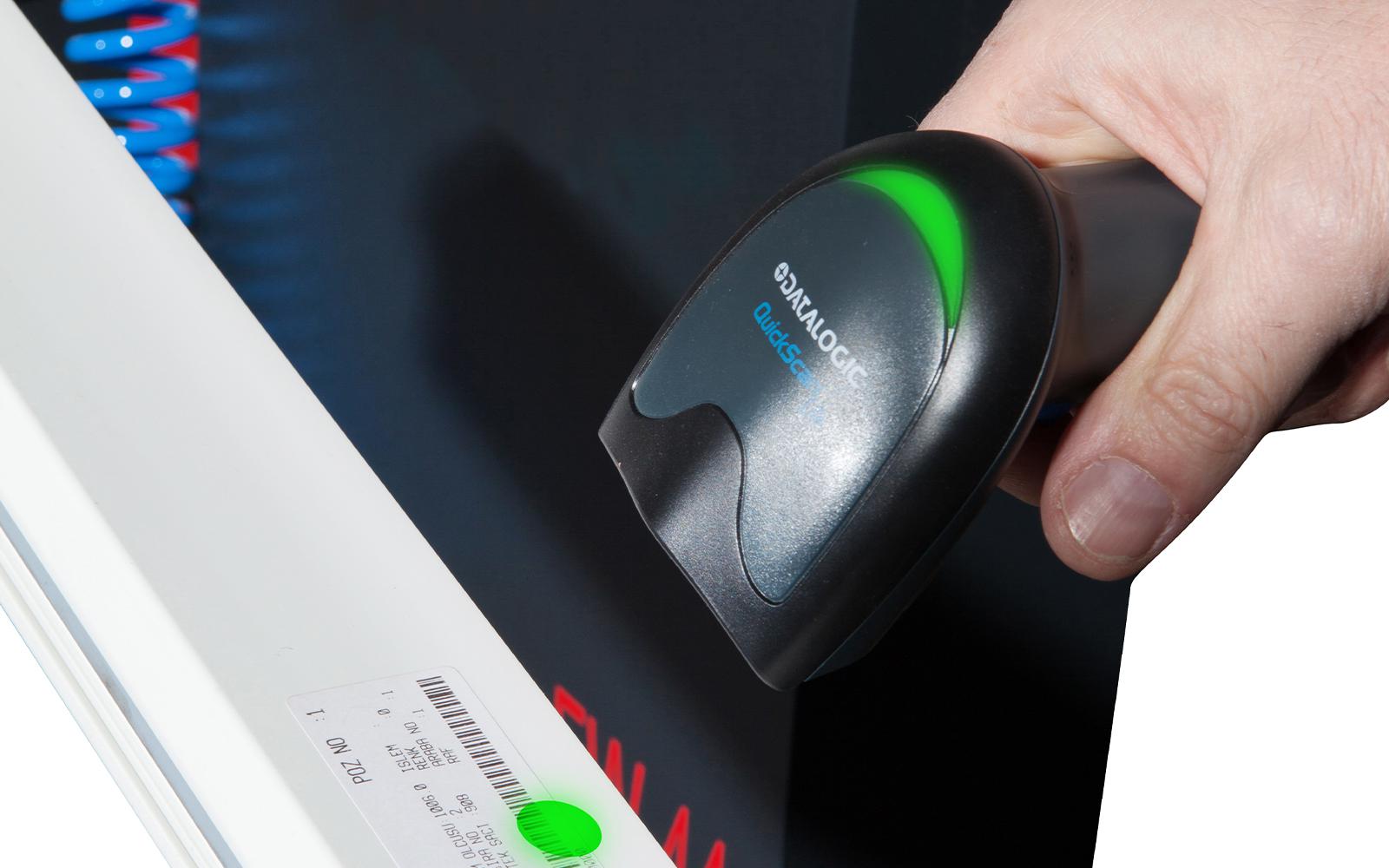

Barcode system

Gasket clamp system

Remote connection support.

Welding moulds

Can be performed according the working position (reverse or direct line)

Preheating system for cold profile in winter time.
